3 mm OD, 1.8 mm ID Nylon Tube, Natural Colour
Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.
Bulk price quote request
Description 3 mm OD, 1.8 mm ID Nylon Tube, Natural Colour – 30M

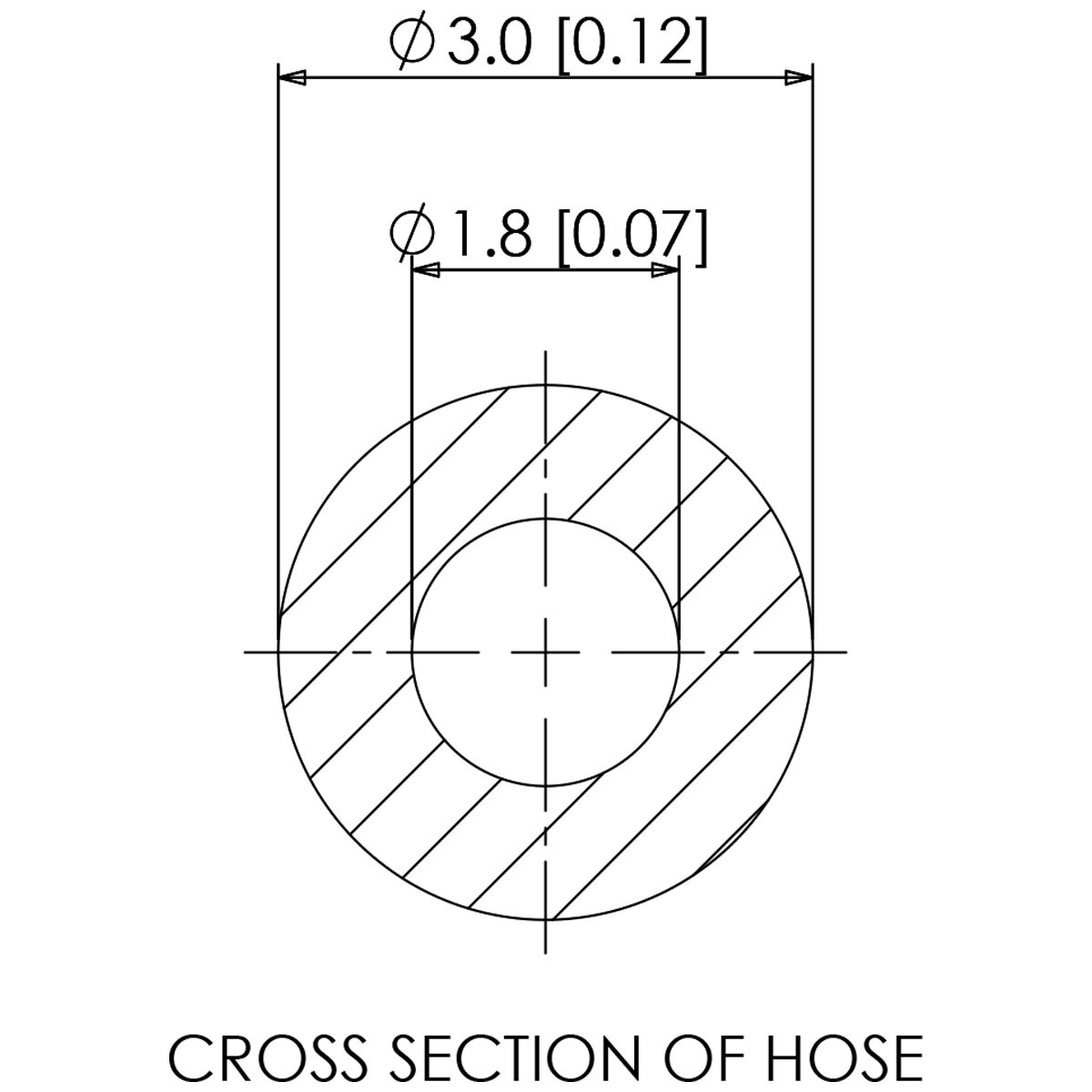

Extended Description 30 Metre coil (100 Feet) of UV Stabilized Natural Colour Nylon 11 with an outside diameter of 3 mm, an internal diameter of 1.8 mm and a wall thickness of 0.60 mm suitable for use with push-in and compression style fittings
Non-Wetted Materials Nylon
Wetted Materials Nylon
Clean Room Manufactured Uncontrolled environment
Temperature Range -51°C – 93°C (-60°F – 200°F)
Working Pressure 4:1 Safety Factor
Operating Range at 25⁰C Vacuum to 28.27 bar (410 psi) at 25°C (75°F)
Diameter Tolerance +0.051 mm / -0.1 mm (+0.002" / -0.004")
Operating Range at 65⁰C Vacuum to 16.55 bar (240 psi) at 65°C (150°F)
Item Weight 0.15kg (5.29oz)
ROHS Compliant Yes
Regulatory Information Meets UL94HB Testing requirements
CE Mark No
REACH Compliant Yes
Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Animal derivative free, Latex free, Conflict minerals free. UV stailized. For further information please email firstname.lastname@example.org
Disclaimer: All information has been carefully collated and presented, however, SBR-LS cannot accept responsibility for incorrect or misprinted information
