1/8" OD x 1/16" ID Un-reinforced Flexible PVC Tube, Clear Colour
Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.
Bulk price quote request
Description 1/8" OD x 1/16" ID Un-reinforced Flexible PVC Tube, Clear Colour – 30M

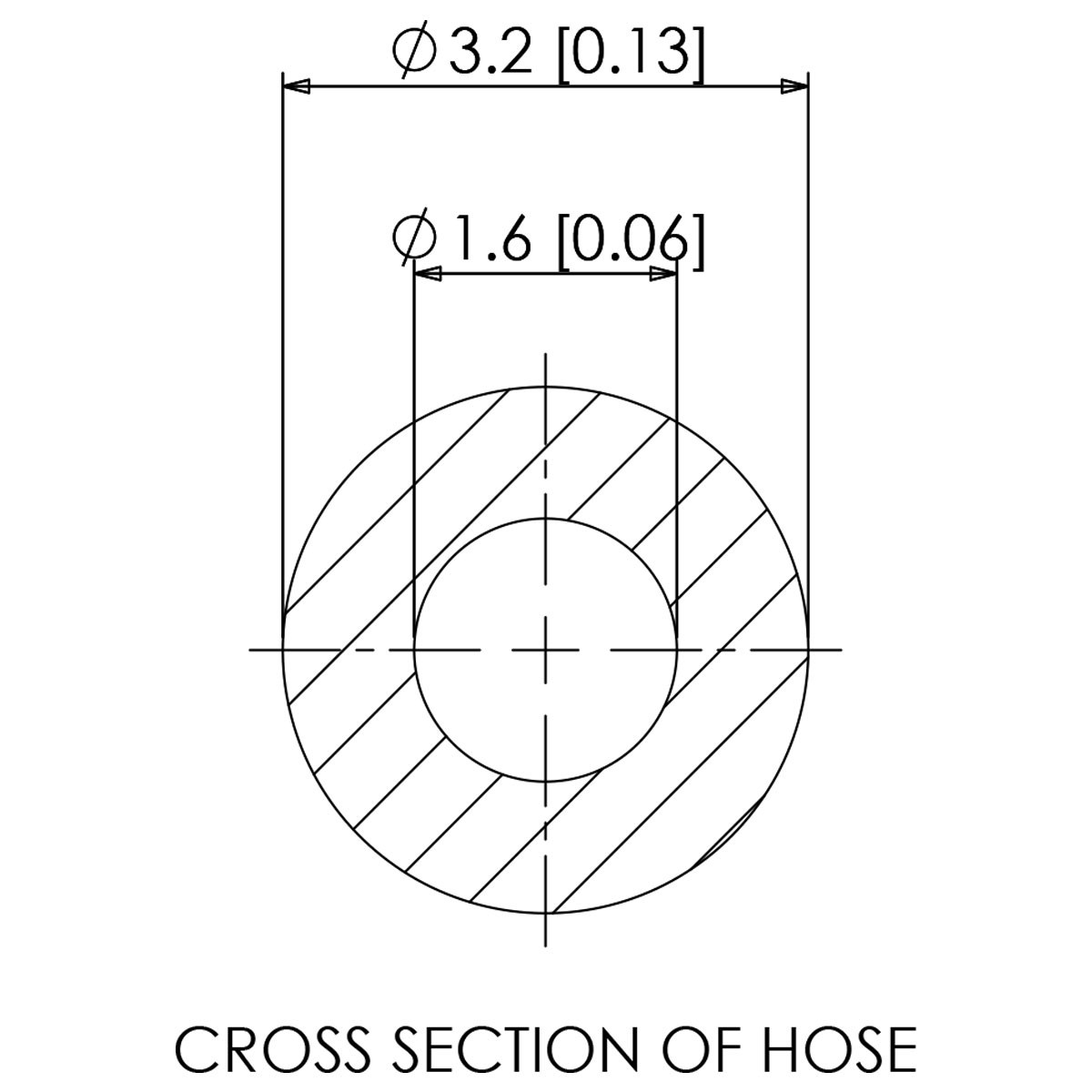

Extended Description 30M coil (100 Feet ) of Un-reinforced flexible Clear Colour Polyvinyl Chloride (PVC) tube with an outside diameter of 1/8", an internal diameter of 1/16" and a wall thickness of 0.031" suitable for use with barb style fittings
Non-Wetted Materials Non-Phthalate Polyvinyl Chloride
Wetted Materials Non-Phthalate Polyvinyl Chloride
Clean Room Manufactured Uncontrolled environment
Temperature Range -34.4°C – 65.55°C (-30°F – 150°F)
Working Pressure 3:1 Safety Factor
Operating Range at 25⁰C Vacuum to 10.00 bar (145 psi) at 25°C (75°F)
Diameter Tolerance ± 0.127 mm (± 0.005")
Operating Range at 65⁰C Vacuum to 1.38 bar (20 psi) at 65°C (150°F)
Item Weight 0.23Kg (8.16oz)
ROHS Compliant Yes
Regulatory Information USP Class VI. FDA 21 CFR 177.1590
CE Mark No
REACH Compliant Yes
Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Latex free, Conflict minerals free. Animal Derivative free. For further information please email firstname.lastname@example.org
Durometer 80 Shore A
Disclaimer: All information has been carefully collated and presented, however, SBR-LS cannot accept responsibility for incorrect or misprinted information
