1/4" OD x 1/8" ID Un-reinforced Flexible PVC Tube, Clear Colour

1/4" OD x 1/8" ID Un-reinforced Flexible PVC Tube, Clear Colour

SBR-E-T-160096

1/4" OD x 1/8" ID Un-reinforced Flexible PVC Tube, Clear Colour

1/4" OD x 1/8" ID Un-reinforced Flexible PVC Tube, Clear Colour – 30M
X

Bulk price quote request

Product Details

SBR-E-T-160096

1/4" OD x 1/8" ID Un-reinforced Flexible PVC Tube, Clear Colour

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

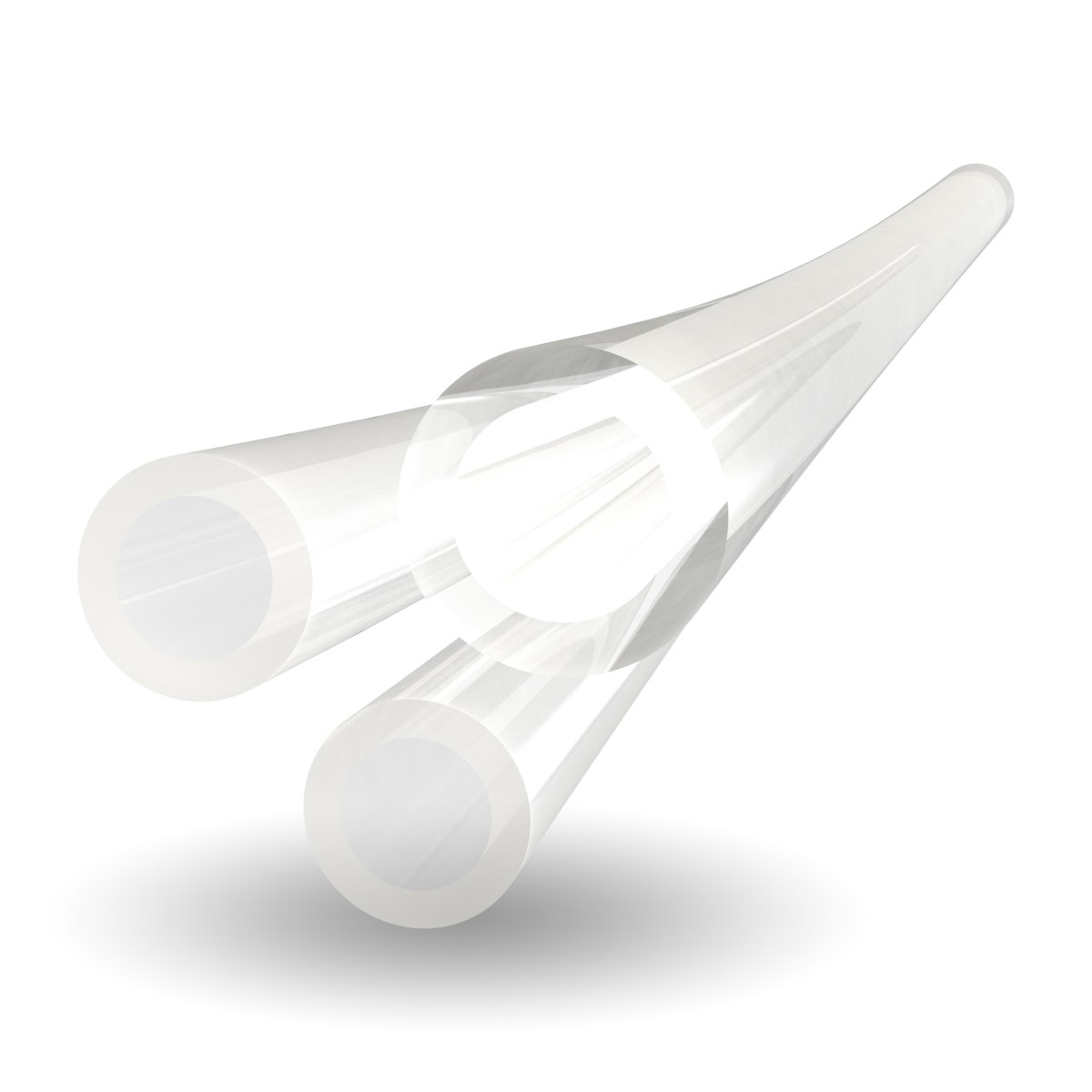

Description 1/4" OD x 1/8" ID Un-reinforced Flexible PVC Tube, Clear Colour – 30M

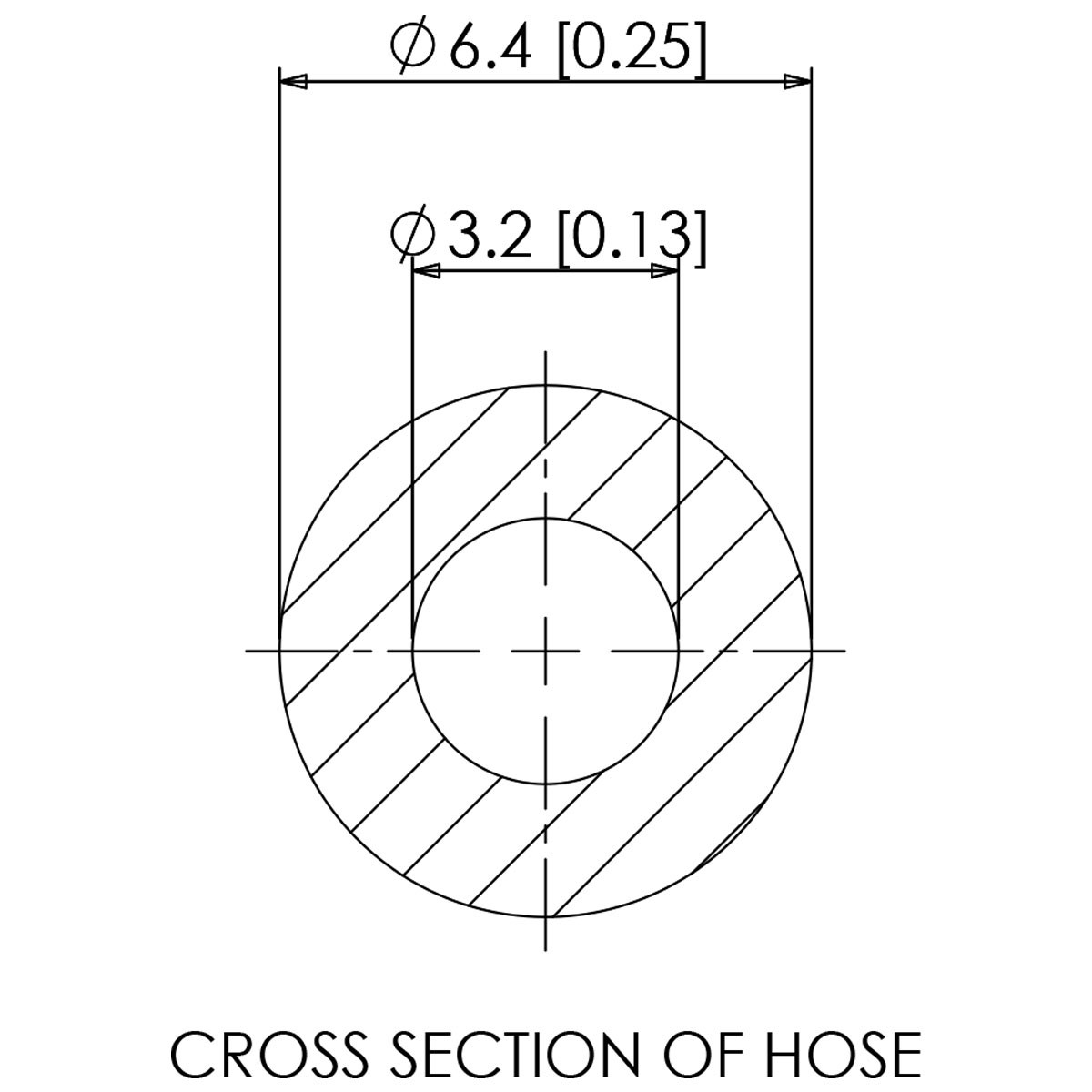

Extended Description 30M coil (100 Feet) of Un-reinforced flexible Clear Colour Polyvinyl Chloride (PVC) tube with an outside diameter of 1/4", an internal diameter of 1/8" and a wall thickness of 0.062" suitable for use with barb style fittings

Non-Wetted Materials Non-Phthalate Polyvinyl Chloride

Wetted Materials Non-Phthalate Polyvinyl Chloride

Cleanroom Manufactured Uncontrolled environment

Temperature Range -34.4°C – 65.55°C (-30°F – 150°F)

Working Pressure 3:1 Safety Factor

Operating Range at 25⁰C Vacuum to 11.38 bar (165 psi) at 25°C (75°F)

Diameter Tolerance ± 0.127 mm (± 0.005")

Operating Range at 65⁰C Vacuum to 1.72 bar (25 psi) at 65°C (150°F)

Item Weight 0.91Kg (2.0lb)

ROHS Compliant Yes

Regulatory Information USP Class VI. FDA 21 CFR 177.1591

CE Mark No

REACH Compliant Yes

Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Latex free, Conflict minerals free. Animal Derivative free. For further information please email sales@sbrls.com

Durometer 80 Shore A

Disclaimer: All information has been carefully collated and presented, however, SBR-LS cannot accept responsibility for incorrect or misprinted information
